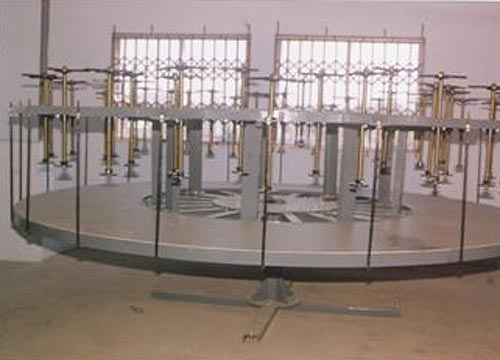

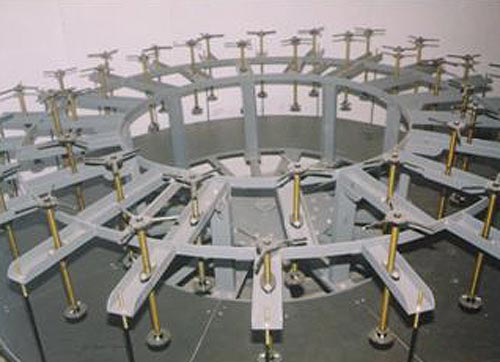

We manufacture rotary tables for the production of poured articles. Pouring units, which are manually controlled, pass over the open mould and pour in the correct amount of material. The mould is then closed and locked. The material, usually foamed polyurethane, expands in the closed mould until final hardness has been reached. De-moulding follows later.

Standard sizes available as follows.:

Sr.no.	No. of stations	No. of stations in inner dia.	No. of stations on outer dia.	Max. Diameter
1	16	8	8	2820mm
2	20	10	10	3150mm
3	30	15	15	3965mm
4	40	20	20	4775mm
5	50	25	25	5590mm
6	16	6	10	2520mm
7	20	8	12	2820mm
8	30	12	18	3480mm
9	40	18	22	4445mm
10	50	22	28	5080mm

Max size for a single station is 400 mm. diameter.
